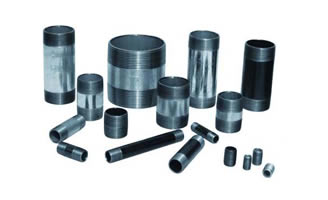

Pipe Nipples
Product Specifications & Features!

Product Specifications & Features

Specification

Type of Nipple

  • Standard Nipple – Sch – 40
  • Heavy Nipple – Sch 80
  • Seamless Nipple – Sch 80

Material

  • ASTM A53
  • ASTM A53
  • ASTM A106

Dimensions

  • ASTM A733
  • ASTM A733
  • ASTM A733

Threads

  • ASME B 1.20.1
  • ASME B 1.20.1
  • ASME B 1.20.1

Type

  • Galvanized / Black
  • Galvanized / Black
  • Black

Features

  • Size of Pipe - Available from 1/8" – 6" Pipe Dia.

  • Length Of Nipples - Available from Close – 144".

  • Available in Black & Galvanized Schedule 40 and 80 Pipe Nipples.

  • Available in Black Seamless Nipples.

  • Ends are cut square to the central axis. All burrs on the inside are removed. The ends of the pipe nipples are chamfered on the outside at an angle of 35˚ +/- 10˚ to the central axis.

  • Pipe nipples are threaded on both ends with standard NPT tapered threads. Threads are right hand on both ends.

  • Color coded product labels as per customer request.

  • Preferred packing quantities as per customer request.
