Khanna Malleables
HANDRAIL / SLIP ON PIPE FITTINGS / CLAMP TYPE PIPE / SCREWED FITTINGS
HANDRAIL / SLIP ON PIPE FITTINGS / CLAMP TYPE PIPE / SCREWED FITTINGS
- Galvanized cast iron or Powder Coated as Required by Customer
- Quick & Easy Installation
- No Welding
- Higher Tensile Strength upto 35350 LBS
- Higher Tensile Strength Ensures No Cracking
- Tested Pressure of 1200 Kgs on each Joint
- Flexible systems for various applications.
- Excellent Finish & Rugged Design
- MATERIAL CONFORMATION - BS EN 1562:1997
- GALVANIZING STANDARDS - EN 1461 : 1999
- TYPE OF SET SCREWS - STAINLESS STEEL
TUV CERTIFIED

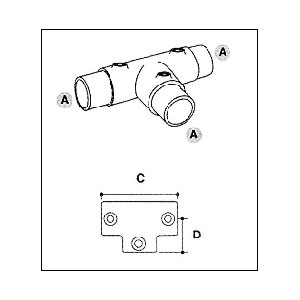

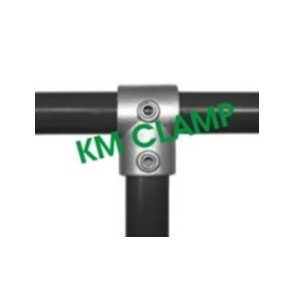

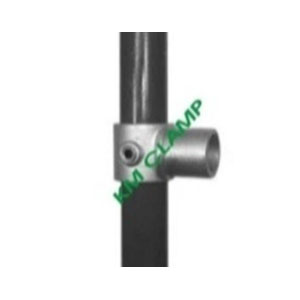

SINGLE SOCKET TEE / SHORT TEE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 101 AAA18 10 - 3 | 101 AA21 10 - 4 | 101 A27 10 - 5 | 101 B34 10 - 6 | 101 C42 10 - 7 | 101 D48 10 - 8 | 101 E60 10 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Typical use is on straight and level guardrail to connection to the top rail or end. Mid rail to the vertical. The key clamp cannot be used where the through tube (horizontal in photo) has to be joined within the fitting.

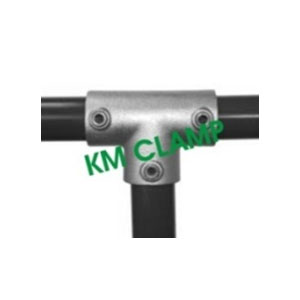

LONG TEE / THREE SOCKET TEE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 104 AAA18 25 - 3 | 104 AA21 25 - 4 | 104 A27 25 - 5 | 104 B34 25 - 6 | 104 C42 25 - 7 | 104 D48 25 - 8 | 104 E60 25 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Typical use is on straight and level guardrail to connect the vertical to the Top rail.
THREE WAY THROUGH / SIDE OUTLET TEE 90°
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 116 AAA18 21 - 3 | 116 AA21 21 - 4 | 116 A27 21 - 5 | 116 B34 21 - 6 | 116 C42 21 - 7 | 116 D48 21 - 8 | 116 E60 21 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Typical use is on straight and level guardrail for connecting the mid / lower rail to the vertical at a 90° corner.

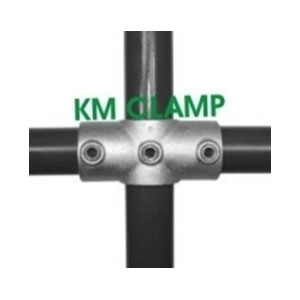

TWO SOCKET CROSS
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 119 AAA18 79 - 3 | 119 AA21 79 - 4 | 119 A27 79 - 5 | 119 B34 79 - 6 | 119 C42 79 - 7 | 119 D48 79 - 8 | 119 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Typical use is on straight and level guardrail for connecting the mid / lower rail to the vertical at a 90° corner.

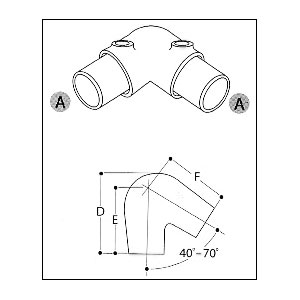

ACUTE ANGLE ELBOW (40 - 70°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 123 AAA18 56 - 3 | 123 AA21 56 - 4 | 123 A27 56 - 5 | 123 B34 56 - 6 | 123 C42 56 - 7 | 123 D48 56 - 8 | 123 E60 56 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Alternative to Bending to form a connection between a sloping tube and an end post

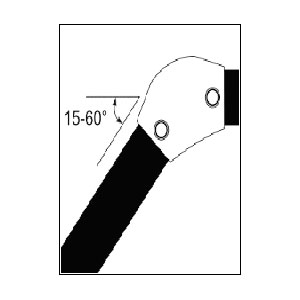

VARIBALE ANGLE ELBOW 15-60° / OBTUSE ANGLE ELBOW
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 124 AAA18 55 - 3 | 124 AA21 55 - 4 | 124 A27 55 - 5 | 124 B34 55 - 6 | 124 C42 55 - 7 | 124 D48 55 - 8 | 124 E60 55 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

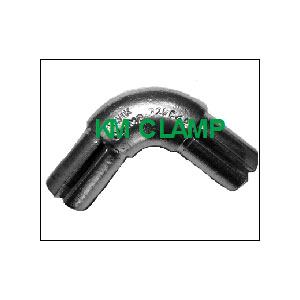

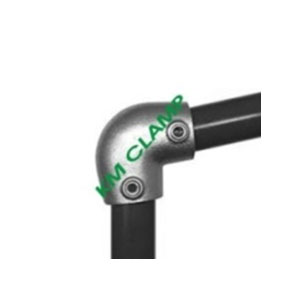

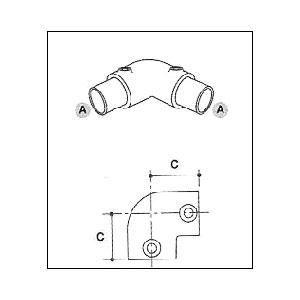

TWO WAY ELBOW / ELBOW 90°
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 125 AAA18 15 - 3 | 125 AA21 15 - 4 | 125 A27 15 - 5 | 125 B34 15 - 6 | 125 C42 15 - 7 | 125 D48 15 - 8 | 125 E60 15 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Typical use is to connect the end vertical to the top rail in straight and level guardrail

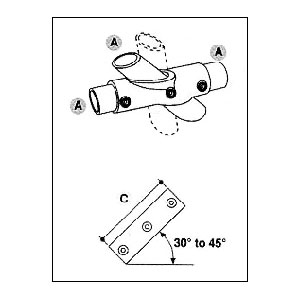

ADJUSTABLE LONG TEE 30-45°
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 127 AAA18 79 - 3 | 127 AA21 79 - 4 | 127 A27 79 - 5 | 127 B34 79 - 6 | 127 C42 79 - 7 | 127 D48 79 - 8 | 127 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

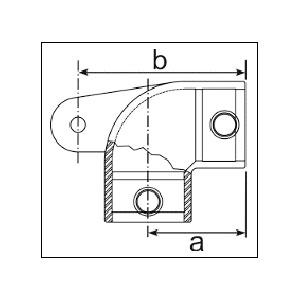

3 WAY ELBOW / SIDE OUTLET ELBOW
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 128 AAA18 20 - 3 | 128 AA21 20 - 4 | 128 A27 20 - 5 | 128 B34 20 - 6 | 128 C42 20 - 7 | 128 D48 20 - 8 | 128 E60 20 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Typical use is on straight and level guardrail at a 90° where an upright is in position

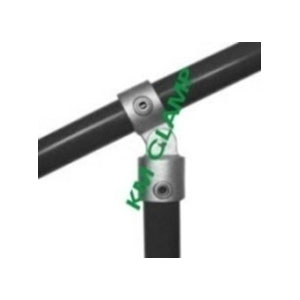

ADJUSTABLE SHORT TEE (30-60°) / SINGLE SOCKET TEE (30-60°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 129 AAA18 29 - 3 | 129 AA21 29 - 4 | 129 A27 29 - 5 | 129 B34 29 - 6 | 129 C42 29 - 7 | 129 D48 29 - 8 | 129 E60 29 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Typical use is a tee connection on angled top rails on steeper slopes or stairs with the upright remaining vertical
ADJUSTABLE CROSS (30-45°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 130 AAA18 30 - 3 | 130 AA21 30 - 4 | 130 A27 30 - 5 | 130 B34 30 - 6 | 130 C42 30 - 7 | 130 D48 30 - 8 | 130 E60 30 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Typical use is as a cross connection on angled mid/lower rails on steeper sloped or stairs with the upright remaining vertical

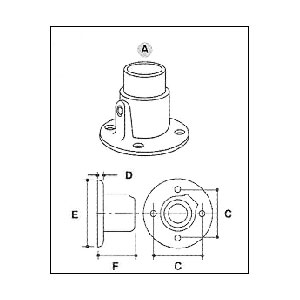

WALL FLANGE / FLANGE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 131 AAA18 61 - 3 | 131 AA21 61 - 4 | 131 A27 61 - 5 | 131 B34 61 - 6 | 131 C42 61 - 7 | 131 D48 61 - 8 | 131 E60 61 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
This fitting may be used on structures where it is only required as a positional fixing.

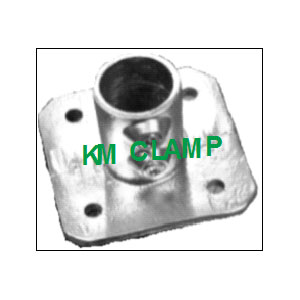

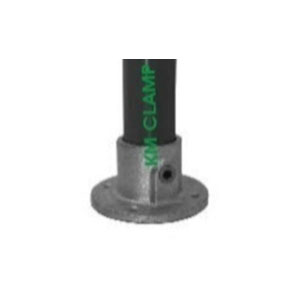

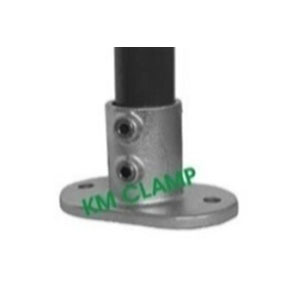

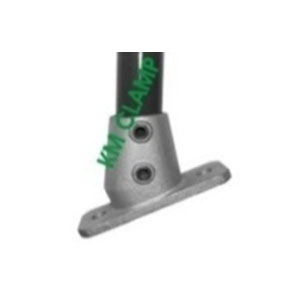

RAILING BASE FLANGE / STANDARD RAILING FLANGE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 132 AAA18 62 - 3 | 132 AA21 62 - 4 | 132 A27 62 - 5 | 132 B34 62 - 6 | 132 C42 62 - 7 | 132 D48 62 - 8 | 132 E60 62 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
This fitting when used as a base plate for guardrailing should always be positioned with the holes across the line of the guardrail to give maximum strength.

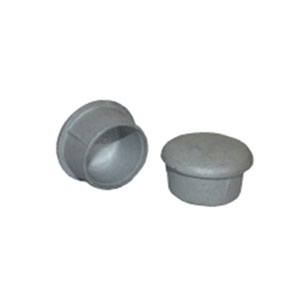

PLASTIC END CAP / PLASTIC PLUG
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 133 AAA18 77 - 3 | 133 AA21 77 - 4 | 133 A27 77 - 5 | 133 B34 77 - 6 | 133 C42 77 - 7 | 133 D48 77 - 8 | 133 E60 77 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
This stop end can be used in either medium or heavy gauge tube.

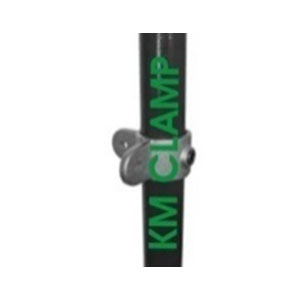

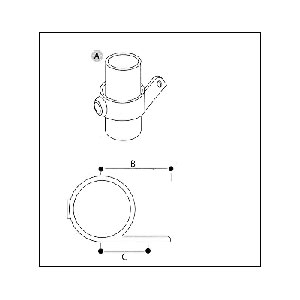

CLAMP ON TEE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 135 AAA18 16 - 3 | 135 AA21 16 - 4 | 135 A27 16 - 5 | 135 B34 16 - 6 | 135 C42 16 - 7 | 135 D48 16 - 8 | 135 E60 16 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Used for making additions to upgrading or modifying an existing structure without having the need to dismantle part or all of that structure.

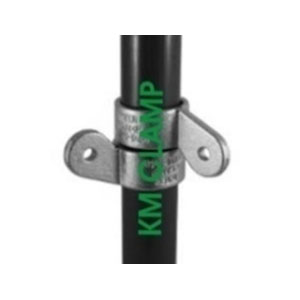

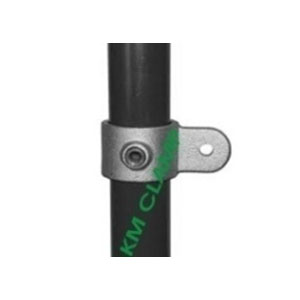

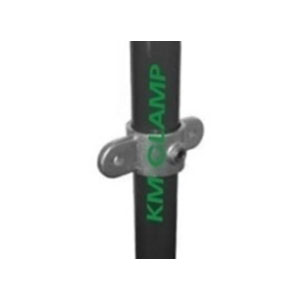

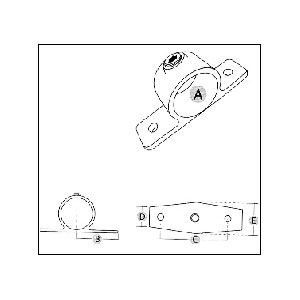

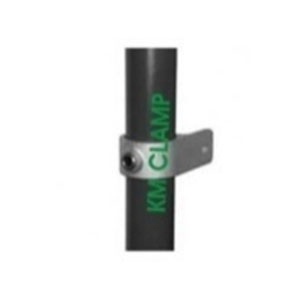

CRADLE CLAMP
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 135 Y AAA18 79 - 3 | 135 Y AA21 79 - 4 | 135 Y A27 79 - 5 | 135 Y B34 79 - 6 | 135 Y C42 79 - 7 | 135 Y D48 79 - 8 | 135 Y E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
GATE EYE / EYE FITTING
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 138 AAA18 78 - 3 | 138 AA21 78 - 4 | 138 A27 78 - 5 | 138 B34 78 - 6 | 138 C42 78 - 7 | 138 D48 78 - 8 | 138 E60 78 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Used in conjunction with Q clamp fitting reference 140.

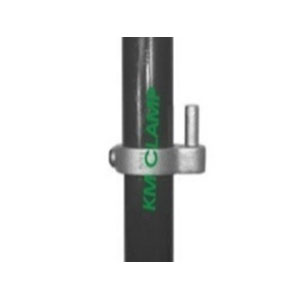

GATE HINGE / PIN FITTING
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 140 AAA18 83 - 3 | 140 AA21 83 - 4 | 140 A27 83 - 5 | 140 B34 83 - 6 | 140 C42 83 - 7 | 140 D48 83 - 8 | 140 E60 83 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Used in conjunction with Q clamp fitting reference 138.
SIDE BRACKET
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 141 AAA18 79 - 3 | 141 AA21 79 - 4 | 141 A27 79 - 5 | 141 B34 79 - 6 | 141 C42 79 - 7 | 141 D48 79 - 8 | 141 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

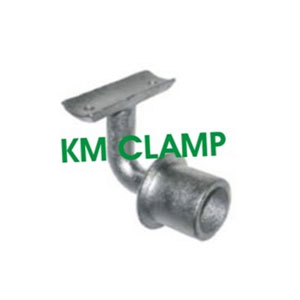

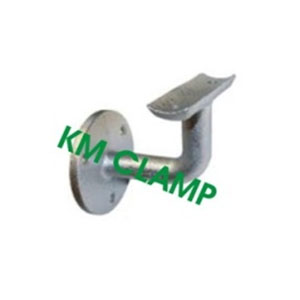

HANDRAIL BRACKET / RAIL SUPPORT
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 143 AAA18 70 - 3 | 143 AA21 70 - 4 | 143 A27 70 - 5 | 143 B34 70 - 6 | 143 C42 70 - 7 | 143 D48 70 - 8 | 143 E60 70 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
With four countersunk holes, this fitting is ideal as a flange to terminate handrails to a wall or other similar application.

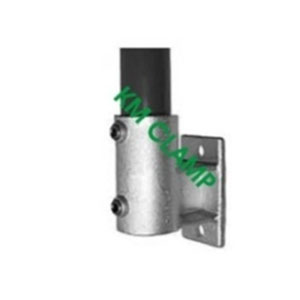

RAILING SIDE SUPPORT (VERTICAL) / STANDARD VERTICAL RAILING BASE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 144 AAA18 64 - 3 | 144 AA21 64 - 4 | 144 A27 64 - 5 | 144 B34 64 - 6 | 144 C42 64 - 7 | 144 D48 64 - 8 | 144 E60 64 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Structural offset side palm base fixing guardrailing to walls, steps, ramps, etc.
RAILING SIDE SUPPORT (HORIZONTAL) / STANDARD HORIZONTAL RAILING BASE FLANGE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 145 AAA18 65 - 3 | 145 AA21 65 - 4 | 145 A27 65 - 5 | 145 B34 65 - 6 | 145 C42 65 - 7 | 145 D48 65 - 8 | 145 E60 65 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
This fitting is designed for palm fixing guardrailing and balustrading to walls,parapets, steps and ramps.
SIDE PALM FIXING / WALL FLANGE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 146 AAA18 68 - 3 | 146 AA21 68 - 4 | 146 A27 68 - 5 | 146 B34 68 - 6 | 146 C42 68 - 7 | 146 D48 68 - 8 | 146 E60 68 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Structural flush side palm base fixing guardrailing to wall, steps or ramps etc.

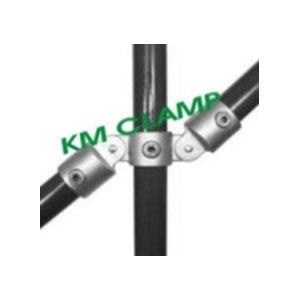

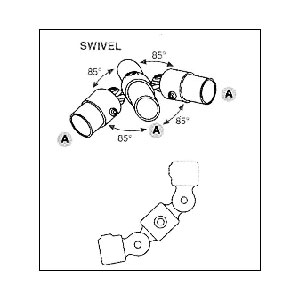

INTERNAL SWIVE TEE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 147 AAA18 79 - 3 | 147 AA21 79 - 4 | 147 A27 79 - 5 | 147 B34 79 - 6 | 147 C42 79 - 7 | 147 D48 79 - 8 | 147 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Ideal use on handrails or offset guardrailing down variable angled slopes.
SHORT SWIVEL TEE / ADJUSTABLE SIDE OUTLET TEE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 148 AAA18 19 - 3 | 148 AA21 19 - 4 | 148 A27 19 - 5 | 148 B34 19 - 6 | 148 C42 19 - 7 | 148 D48 19 - 8 | 148 E60 19 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Shown priced and sold as a single fitting but normally used in pairs to creat angles between 85° and 235°

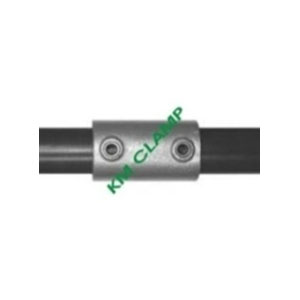

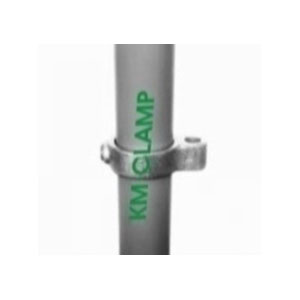

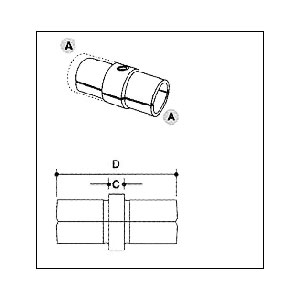

EXTERNAL SLEEVE JOINT / STARIGHT COUPLING
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 149 AAA18 14 - 3 | 149 AA21 14 - 4 | 149 A27 14 - 5 | 149 B34 14 - 6 | 149 C42 14 - 7 | 149 D48 14 - 8 | 149 E60 14 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
An inline external tube connector for joining two tubes of the same diameter.

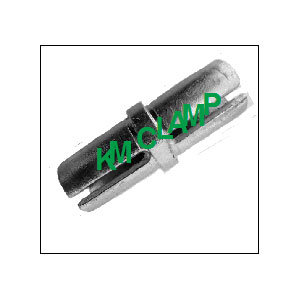

INTERNAL EXPANDING JOINT / INTERNAL COUPLING
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 150 AAA18 18 - 3 | 150 AA21 18 - 4 | 150 A27 18 - 5 | 150 B34 18 - 6 | 150 C42 18 - 7 | 150 D48 18 - 8 | 150 E60 18 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
An inline external tube connector for joining two tubes of the same diameter.
SLEEVE STRAIGHT CONNECTOR
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 151 AAA18 79 - 3 | 151 AA21 79 - 4 | 151 A27 79 - 5 | 151 B34 79 - 6 | 151 C42 79 - 7 | 151 D48 79 - 8 | 151 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

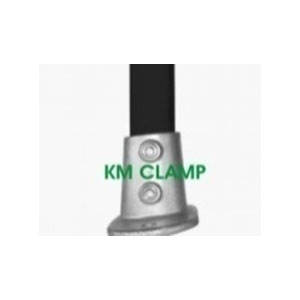

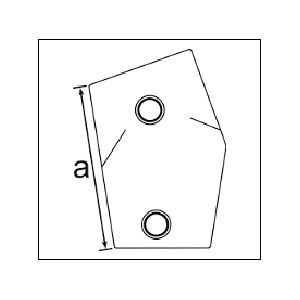

SLOPE BASE FLANGE (0- 11°) / ANGLE FLANGE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 152 AAA18 79 - 3 | 152 AA21 79 - 4 | 152 A27 79 - 5 | 152 B34 79 - 6 | 152 C42 79 - 7 | 152 D48 79 - 8 | 152 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SLOPE SHORT TEE (0- 11°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 153 AAA18 79 - 3 | 153 AA21 79 - 4 | 153 A27 79 - 5 | 153 B34 79 - 6 | 153 C42 79 - 7 | 153 D48 79 - 8 | 153 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SLOPE ELBOW (0- 11°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 154 AAA18 79 - 3 | 154 AA21 79 - 4 | 154 A27 79 - 5 | 154 B34 79 - 6 | 154 C42 79 - 7 | 154 D48 79 - 8 | 154 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SLOPE LONG TEE (0- 11°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 155 AAA18 79 - 3 | 155 AA21 79 - 4 | 155 A27 79 - 5 | 155 B34 79 - 6 | 155 C42 79 - 7 | 155 D48 79 - 8 | 155 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SLOPE CROSS (0- 11°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 156 AAA18 79 - 3 | 156 AA21 79 - 4 | 156 A27 79 - 5 | 156 B34 79 - 6 | 156 C42 79 - 7 | 156 D48 79 - 8 | 156 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
CENTER CROSS / FOUR SOCKET CROSS
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 158 AAA18 40 - 3 | 158 AA21 40 - 4 | 158 A27 40 - 5 | 158 B34 40 - 6 | 158 C42 40 - 7 | 158 D48 40 - 8 | 158 E60 40 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
A 4 way cross that enables the vertical to pass through the centre of the fitting with the four horizontal tubes joining at 90° to each other.
CLAMP ON CROSSOVER
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 158 AAA18 40 - 3 | 158 AA21 40 - 4 | 158 A27 40 - 5 | 158 B34 40 - 6 | 158 C42 40 - 7 | 158 D48 40 - 8 | 158 E60 40 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Used for making additions to, upgrading or modifying an existing structure without having the need to dismantle part or all of that structure.
OFFSET CROSSOVER
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 161 AAA18 45 - 3 | 161 AA21 45 - 4 | 161 A27 45 - 5 | 161 B34 45 - 6 | 161 C42 45 - 7 | 161 D48 45 - 8 | 161 E60 45 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
The tube is unable to be jointed within this fitting. Ideal application are for racking systems or offset guardrail.
COMBINATION SOCKET / COMBINATION SOCKET TEE & CROSSOVER
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 165 AAA18 46 - 3 | 165 AA21 46 - 4 | 165 A27 46 - 5 | 165 B34 46 - 6 | 165 C42 46 - 7 | 165 D48 46 - 8 | 165 E60 46 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
The fitting enables the connection of a vertical upright at 90° to two horizontal rails.
ADJUSTABLE KNUCKLE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 166 AAA18 79 - 3 | 166 AA21 79 - 4 | 166 A27 79 - 5 | 166 B34 79 - 6 | 166 C42 79 - 7 | 166 D48 79 - 8 | 166 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
DOUBLE SWIVEL COMBINATION
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 167 AAA18 79 - 3 | 167 AA21 79 - 4 | 167 A27 79 - 5 | 167 B34 79 - 6 | 167 C42 79 - 7 | 167 D48 79 - 8 | 167 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Complete double swivel with the swivel connectors at 180° to each other. Each swivel has a travel of approximately 85° from the horizontal in both vertical directions.
DOUBLE SWIVEL COMBINATION - MALE PART
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 167-M AAA18 79 - 3 | 167-M AA21 79 - 4 | 167-M A27 79 - 5 | 167-M B34 79 - 6 | 167-M C42 79 - 7 | 167-M D48 79 - 8 | 167-M E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
A double male fitting with the lugs at 180° to each other.
CORNER SWIVEL COMBINATION
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 168 AAA18 79 - 3 | 168 AA21 79 - 4 | 168 A27 79 - 5 | 168 B34 79 - 6 | 168 C42 79 - 7 | 168 D48 79 - 8 | 168 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Complete double swivel with the swivel connectors at 180° to each other. Each swivel has a travel of approximately 85° from the horizontal in both vertical directions.
CORNER SWIVEL COMBINATION - MALE PART
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 168-M AAA18 79 - 3 | 168-M AA21 79 - 4 | 168-M A27 79 - 5 | 168-M B34 79 - 6 | 168-M C42 79 - 7 | 168-M D48 79 - 8 | 168-M E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Double male fitting with two lugs 90° to each other.
SWIVEL BASE FLANGE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 169 AAA18 79 - 3 | 169 AA21 79 - 4 | 169 A27 79 - 5 | 169 B34 79 - 6 | 169 C42 79 - 7 | 169 D48 79 - 8 | 169 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Complete locating swivel. Swivel has a travel of approximately 85° from the vertical in each direction.
SWIVEL BASE FLANGE - MALE PART
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 169-M AAA18 79 - 3 | 169-M AA21 79 - 4 | 169-M A27 79 - 5 | 169-M B34 79 - 6 | 169-M C42 79 - 7 | 169-M D48 79 - 8 | 169-M E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Non structural Male locating flange.
OFFSET SINGLE SWIVEL - MALE PART
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 172-M AAA18 79 - 3 | 172-M AA21 79 - 4 | 172-M A27 79 - 5 | 172-M B34 79 - 6 | 172-M C42 79 - 7 | 172-M D48 79 - 8 | 172-M E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SINGLE SWIVEL COMBINATION
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 173 AAA18 79 - 3 | 173 AA21 79 - 4 | 173 A27 79 - 5 | 173 B34 79 - 6 | 173 C42 79 - 7 | 173 D48 79 - 8 | 173 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Non structural Male locating flange Complete single swivel. The swivel has a travel of approximately 85° from the horizontal in both vertical directions.
SINGLE SWIVEL COMBINATION - FEMALE PART
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 173-F AAA18 79 - 3 | 173-F AA21 79 - 4 | 173-F A27 79 - 5 | 173-F B34 79 - 6 | 173-F C42 79 - 7 | 173-F D48 79 - 8 | 173-F E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
This fitting is designed to be used in conjunction with the 'M' fittings and is not generally used on its own.
SINGLE MALE SWIVEL
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 173-M AAA18 79 - 3 | 173-M AA21 79 - 4 | 173-M A27 79 - 5 | 173-M B34 79 - 6 | 173-M C42 79 - 7 | 173-M D48 79 - 8 | 173-M E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Single male fitting with only one lug
SWIVEL TEE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 174 AAA18 79 - 3 | 174 AA21 79 - 4 | 174 A27 79 - 5 | 174 B34 79 - 6 | 174 C42 79 - 7 | 174 D48 79 - 8 | 174 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SWIVEL ELBOW
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 175 AAA18 79 - 3 | 175 AA21 79 - 4 | 175 A27 79 - 5 | 175 B34 79 - 6 | 175 C42 79 - 7 | 175 D48 79 - 8 | 175 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SWIVEL ELBOW - MALE PART
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 175-M AAA18 79 - 3 | 175-M AA21 79 - 4 | 175-M A27 79 - 5 | 175-M B34 79 - 6 | 175-M C42 79 - 7 | 175-M D48 79 - 8 | 175-M E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SIDE OUTLET TEE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 176 AAA18 79 - 3 | 176 AA21 79 - 4 | 176 A27 79 - 5 | 176 B34 79 - 6 | 176 C42 79 - 7 | 176 D48 79 - 8 | 176 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
LOCKING RING / COLLAR
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 175 AAA18 75 - 3 | 175 AA21 75 - 4 | 175 A27 75 - 5 | 175 B34 75 - 6 | 175 C42 75 - 7 | 175 D48 75 - 8 | 175 E60 75 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
A locking collar used as extra support for a Q clamp fitting on structures where the slip load on the grubscrew may be exceeded i.e. racking
HOOK
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 182 AAA18 76 - 3 | 182 AA21 76 - 4 | 182 A27 76 - 5 | 182 B34 76 - 6 | 182 C42 76 - 7 | 182 D48 76 - 8 | 182 E60 76 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Chain hook used to locate chains across opening. Not ideal for permanent chain location.
DOUBLE LUGGED BRACKET / SWIVEL FLANGE PLATE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 198 AAA18 58 - 3 | 198 AA21 58 - 4 | 198 A27 58 - 5 | 198 B34 58 - 6 | 198 C42 58 - 7 | 198 D48 58 - 8 | 198 E60 58 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Allows for fixing to wooden planking or various panels for flush fitting.
SINGLE LUGGED BRACKET
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 199 AAA18 57 - 3 | 199 AA21 57 - 4 | 199 A27 57 - 5 | 199 B34 57 - 6 | 199 C42 57 - 7 | 199 D48 57 - 8 | 199 E60 57 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masony anchors.
HEAVY DUTY RAILING BASE FLANGE
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 233 AAA18 79 - 3 | 233 AA21 79 - 4 | 233 A27 79 - 5 | 233 B34 79 - 6 | 233 C42 79 - 7 | 233 D48 79 - 8 | 233 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
An adjustable structural base fitting for the vertical. The design of this fitting will only allow it to be installed in the correct plane.
HEAVY DUTY RAILING BASE FLANGE ( SQUARE BASE )
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 233 AAA18 79 - 3 | 233 AA21 79 - 4 | 233 A27 79 - 5 | 233 B34 79 - 6 | 233 C42 79 - 7 | 233 D48 79 - 8 | 233 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
BASE FLANGE WITH TOE BOARD FIXING ADAPTOR
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 242 AAA18 79 - 3 | 242 AA21 79 - 4 | 242 A27 79 - 5 | 242 B34 79 - 6 | 242 C42 79 - 7 | 242 D48 79 - 8 | 242 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
HEAVY DUTY SIDE PALM
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 246 AAA18 79 - 3 | 246 AA21 79 - 4 | 246 A27 79 - 5 | 246 B34 79 - 6 | 246 C42 79 - 7 | 246 D48 79 - 8 | 246 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Designed for palm fixing of guardrail and balustrades to walls, parapets, steps and ramps. The upright cannot drop through the socket.
SLOPE BASE FLANGE (30-45°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 251 AAA18 79 - 3 | 251 AA21 79 - 4 | 251 A27 79 - 5 | 251 B34 79 - 6 | 251 C42 79 - 7 | 251 D48 79 - 8 | 251 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
This fitting should only be subjected to light loads which cannot be positioned at 90° to the applied load.
SLOPE BASE FLANGE (11-29°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 252 AAA18 79 - 3 | 252 AA21 79 - 4 | 252 A27 79 - 5 | 252 B34 79 - 6 | 252 C42 79 - 7 | 252 D48 79 - 8 | 252 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SLOPE SHORT TEE (11-29°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 253 AAA18 79 - 3 | 253 AA21 79 - 4 | 253 A27 79 - 5 | 253 B34 79 - 6 | 253 C42 79 - 7 | 253 D48 79 - 8 | 253 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SLOPE LONG TEE (11-29°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 255 AAA18 79 - 3 | 255 AA21 79 - 4 | 255 A27 79 - 5 | 255 B34 79 - 6 | 255 C42 79 - 7 | 255 D48 79 - 8 | 255 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SLOPE CROSS (11-29°)
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 256 AAA18 79 - 3 | 256 AA21 79 - 4 | 256 A27 79 - 5 | 256 B34 79 - 6 | 256 C42 79 - 7 | 256 D48 79 - 8 | 256 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
EXTRA SET SCREW
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 300 AAA18 79 - 3 | 300 AA21 79 - 4 | 300 A27 79 - 5 | 300 B34 79 - 6 | 300 C42 79 - 7 | 300 D48 79 - 8 | 300 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
ALUMINIUM END CAP
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 333 AAA18 79 - 3 | 333 AA21 79 - 4 | 333 A27 79 - 5 | 333 B34 79 - 6 | 333 C42 79 - 7 | 333 D48 79 - 8 | 333 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SLEEVE ELBOW
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 725 AAA18 79 - 3 | 725 AA21 79 - 4 | 725 A27 79 - 5 | 725 B34 79 - 6 | 725 C42 79 - 7 | 725 D48 79 - 8 | 725 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
ASSIST SADDLE WALL BRACKET
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 746 AAA18 79 - 3 | 746 AA21 79 - 4 | 746 A27 79 - 5 | 746 B34 79 - 6 | 746 C42 79 - 7 | 746 D48 79 - 8 | 746 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
ASSIST SADDLE WALL BRACKET - SMALL DIA
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 746-S AAA18 79 - 3 | 746-S AA21 79 - 4 | 746-S A27 79 - 5 | 746-S B34 79 - 6 | 746-S C42 79 - 7 | 746-S D48 79 - 8 | 746-S E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
ASSIST SADDLE INTERNAL SWIVEL BRACKET
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 748 AAA18 79 - 3 | 748 AA21 79 - 4 | 748 A27 79 - 5 | 748 B34 79 - 6 | 748 C42 79 - 7 | 748 D48 79 - 8 | 748 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 751 AAA18 79 - 3 | 751 AA21 79 - 4 | 751 A27 79 - 5 | 751 B34 79 - 6 | 751 C42 79 - 7 | 751 D48 79 - 8 | 751 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 752 AAA18 79 - 3 | 752 AA21 79 - 4 | 752 A27 79 - 5 | 752 B34 79 - 6 | 752 C42 79 - 7 | 752 D48 79 - 8 | 752 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| PIPE SIZE - INCHES | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| PIPE SIZE - MM ( OD ) | 17.5 | 21.3 | 79. | 33.7 | 42.4 | 48.3 | 60.3 |
| RELEVANT CODES | 764 AAA18 79 - 3 | 764 AA21 79 - 4 | 764 A27 79 - 5 | 764 B34 79 - 6 | 764 C42 79 - 7 | 764 D48 79 - 8 | 764 E60 79 - 9 |
| AVAILABILTY | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
