Khanna Malleables
PIPE NIPPLES DIVISION

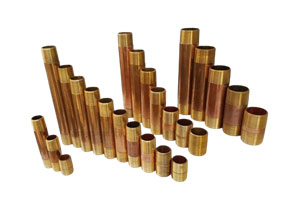

KM BRASS PIPE NIPPLES
KM BRASS PIPE NIPPLES
Lead Free Brass Nipples
- Schedule 40
- Lead Free Brass Conforms to ASTM B43
- Dimensions and Ends Conform to ASTM B687
- Threads Conform to ASME B1.20.1
- Available from 1/8" Through 2"
- Available in Lengths Through 72”
| Pipe Size | PIPE O.D | Wall Thickness (SCH 40) | PIPE Nipple | Brass | Lead Free SCH 40 | ||||||||||||||||
| Inches | Inches | Inches | Length's in Inches | ||||||||||||||||
| 1/8" | 0.405 | 0.068 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 1/4" | 0.54 | 0.088 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 3/8" | 0.675 | 0.091 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 1/2" | 0.84 | 0.109 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 3/4" | 1.05 | 0.113 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 1" | 1.315 | 0.133 | - | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 1-1/4" | 1.66 | 0.14 | - | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 1-1/2" | 1.9 | 0.145 | - | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| 2" | 2.375 | 0.154 | - | - | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
